Pioneer DJ DJM-900NXS2 Mixer Review

Phil Morse | Founder & Tutor
Read time: 6 mins
Last updated 19 January, 2024

The Lowdown

The industry standard club mixer. Now includes per channel red clipping lights (to the relief of sound engineers the world over). Vastly improved effects and improved sound quality to 24 bit 96khz audio. Four channels, attenuated EQ and fader curves, independent send/return, 4 phono inputs and 2 USB ports and unparalleled integration with Pioneers own CDJ Nexus players and Rekordbox software. It’s pricey, but amazing – and if you want the mixer that’s in almost every serious venue on the planet – this is the one to get.

Don’t have our latest DJ gear guide? Click here to grab your free copy

Video Review

First Impressions / Setting up

DJM-900NXS2

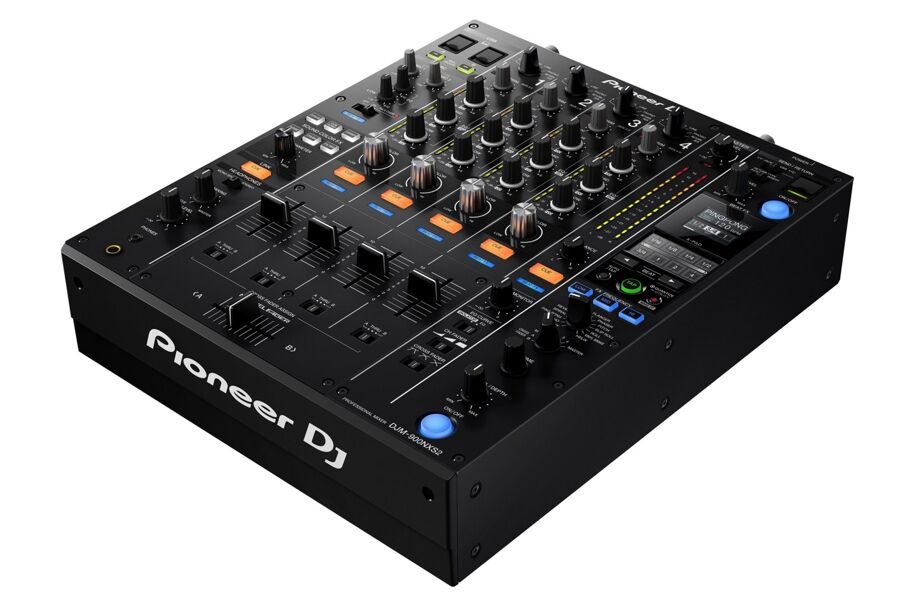

In this review we take a look at the DJM-900NXS2, which is an update to the old DJM-900NXS and the companion mixer to the CDJ-2000NXS2 multi player.

It looks, as I say, as you’d expect any Pioneer mixer to look, with four channels, big Color FX knobs under each set of EQs, the mic controls down the left and the main FX down the right. There are a few cosmetic changes (it is darker and matt coloured, a bit deeper, one of the mic sockets has moved around the back to make way for twin USBs, and there’s a USB FX send/return for iPads etc – more on this later…), but you’ll know your way around it instantly if you’re used to DJing with club gear.

DJ like a pro using ANY gear: The Complete DJ Course

Round the back the Midi socket has been sacrificed to take the mic socket that’s moved from the top (remember, there’s an iPad USB presumably also for Midi now on top), and the ground poles for your Technics earth leads are now frankly huge (not sure why), but everything else is exactly as you’d expect from the previous DJM-900NXS.

Rear
The DJM-900NXS2 has the usual spate of inputs and outputs for phono and line level gear, but a significant addition here is the improved send/return section that now lets you connect a USB device, such as an iPad running Pioneer’s own RMX-1000 app, apart from an external hardware effects unit through the 1/4″ jacks.

Setting up involves plugging your audio ins and outs in and turning on, but if you want to use it synced up with a pair of CDJ-2000NXS2 players, for example, via Pro DJ Link you’ll need to use a network switch, as unlike the bigger DJM-2000 mixer, the DJM-900NXS2 only has one Ethernet socket so can’t be used as a hub, which is a shame. Once this is done though, it is possible to laptop DJ by plugging Rekordbox DJ straight into the mixer, which will then communicate directly with both CDJs.

In Use

Magvel
The new Magvel Fader on the DJM-900NXS2 is smooth and buttery, and we love it for quick cuts while scratching.

We liked the two headphones sockets (you need never panic if you forget your 1/4″ to 1/8″ adaptor again), and the Magvel fader, which is a huge improvement over the frankly so-so faders in most Pioneer mixers to date (the exception being the DJM-S9).

We absolutely love these idiot-proof clip lights that light up when you're pushing too hard. If "redlining" isn't enough, now you've got the word "Clip" telling you that you need to turn it down!
We absolutely love these idiot-proof clip lights that light up when you’re pushing too hard. If “redlining” on the meters isn’t enough, now you’ve got the word “Clip” telling you that you need to turn it down!

One of the biggest single wins on the new mixer for us are the indicator lights. There are two “sets” of these. One is the per-channel “shit DJ” lights, that have now been added to show you, your sound engineer and anyone else who may be looking that you are so totally clipping your channels – they’re awesome and will make clubs sound better the world over. The other set are “FX live” lights to show you which channel your Beat FX are assigned to, which again, is a simple change but a welcome one, especially if you’re sharing the mixer with other DJs.

Twin USB sockets

USB
There are two USB sockets now on the facade of the DJM-900NXS2 for easy switch overs and B2B DJing with two laptops.

Talking of sharing the mixer with other DJs, the DJM-900NXS2 has twin USBs meaning twin sound cards, so two DVS DJs can share the mixer by plugging their laptops in simultaneously, making DJ switchovers a smooth and wonderful thing (Pioneer has of course taken a leaf straight out of Rane’s book with this feature).

Read this next: How To Play Back To Back DJ Sets (3 B2B Tips For Beginners)

Wouldn’t it be good if this could work with all DJ software, including Traktor and Serato, for a truly universal plug and play system alongside a pair of CDJ-2000NXS2s? We can but hope for this somewhat unlikely outcome.

USB FX send/return

Send & Return
The Send / Return channel at the top of the unit lets you “send” audio to an effects unit through 1/4″ jacks, or even an iPad via USB, which “returns” the effected audio to the mixer.

This is actually pretty awesome. You can now patch in an iPad for effects, for instance by routing in a Pioneer RMX-1000 via the iPad app that emulates every function of that unit, although any compatible app can work.

This could be the start of something really cool (who’d have though it eh? Apps for DJ mixers…). For instance, you could record your set via iPad, or injecting samples this way, even having a whole backup or pre-recorded set ready for before the venue fills up, or pre-dancing time at weddings (note: not at peak time, please, festival fakers…).

Massively improved FX

Color FX
The Color FX section now has six effects to choose from, along with a Parameter knob for added tweakability.

First, the Color FX. What started out as simply a filter knob under each channel’s EQs once upon a time has now become a whole ecosystem itself, with six FX available to you here (Space, Echo Dub, Sweep, Noise, Crush, Filter), and crucially, a new knob:

The “Parameter” knob controls something else about the effect in addition to the wet/dry (well, technically wet-dry-wet) combo knob for each channel. It is most obviously useful in taming the previously way-too-loud Noise effect, but having an extra parameter for all the effects here too is a welcome addition.

Beat FX Lights
There are new indicators that light up when you’ve got Beat FX active in each of the four channels as well as the master output. Great for minimising effect confusion when doing B2B sets, or if you just love twiddling FX knobs while you DJ.

There are multiple improvements to the Beat FX too. Vinyl brake does what it says, with adjustable timings for slow or fast vinyl stop, and ping pong echo adds a frankly not very useful addition to the arsenal (why have a stereo echo when most club sound systems are mono anyway?).

FX Frequency
The FX Frequency selector lets you choose which frequencies to apply Beat FX to, such as isolating a delay effect only to the high-frequencies, for instance.

The biggest single addition for me here are the low / mid / high buttons that lets you only apply an effect to a certain part of a track’s frequencies. Having a transformer on the voice (ie mid) as the bass drum and high hats hold the rhythm down uneffected is a beautiful thing indeed. Top marks to Pioneer for adding something different, practical, and fun here.

Beat FX
The sharper Beat FX display and slightly larger X-Pad are welcome revamps on the DJM-900NXS2.

The X-pad is now also improved, because you get eight virtual buttons on it, that are lit from behind and change depending on the effect. The only way of changing beat values was with hardware buttons before, but now, you can do so by pressing the corresponding part of the X-pad when using compatible FX. In other modes, it works much as the old pad used to. The screen is much-improved too, and Pioneer DJ is catching up a bit with the amazing effects areas on the Allen & Heath Xone:DB mixers, for instance, here.

One thing Pioneer DJ stresses again and again about this mixer is the improved sound quality, so if 96kHz, 24-bit audio interfaces make you smile, start smiling.

Conclusion

DJM-900NXS2
The DJM-900NXS2 turns one of Pioneer DJ’s most popular mixers into an even more attractive and functional package that club and touring DJs will love using.

“If it ain’t broke, don’t fix it” goes the saying, and so the DJM-900NXS2 is evolution rather than revolution. That said, some of the changes are pretty big: twin USBs, much improved FX, and the frankly awesome USB FX send/returns are the technological improvements that most jump out, while at the other end of the spectrum, those peak lights – “shame” level indicators – are so needed. Well done for those, Pioneer!

This is a solid advance on the previous model, and there is enough new here to make it a no-brainer if you’re choosing between the two. As part of a bigger set-up with a pair of CDJ-2000NXS2 players it clearly represents the ultimate Rekordbox DJ system – but one that does come at a considerable premium.
